Acoustic lighting that takes the echo out of the room
Lit PET felt baffles, integrated acoustic ceiling systems, sound-absorbing tiles, wall tiles and pendants — one manufacturer, one color palette, one submittal. Focal Point builds every piece in Chicago around the luminaire first, so the light quality is the same Seem, Skydome and ID+ optics the rest of the schedule already uses, and the felt around it is doing real work: a 1' × 8' Seem 1 Acoustic baffle absorbs about thirteen times the sound of a sheet of drywall the same size. I represent the line in South Florida. This page is the whole portfolio, the numbers behind it, an RT60 estimator you can run on your own room, and every file a specifier needs.
- AirCore® PET felt
- Up to 50% recycled
- ASTM E-84 Class A
- Declare Red List Free
- Buy American Act
- 10-day Quickship
- Made in Chicago
- 44 products
Spec sheets & downloads Run the RT60 estimator Send me the room
Downloads
Spec sheets, 3-part specs and files
The two 3-part specifications are the ones a spec writer actually needs: Division 09 for the unlit felt (sound-absorbing ceiling units) and Division 26 for the lit product. The design guide and lookbook are large, so they link straight to Focal Point. Every individual cut sheet, IES file and acoustic test report is on the product page linked from each card below.
What is acoustic lighting?
A luminaire built into or wrapped in a sound-absorbing material, so the fixture that lights the room also absorbs the reflected sound that makes it echo. Focal Point does it with PET felt baffles, tiles and pendants around its own Seem, Skydome and ID+ optics, tested and published in Sabins per unit.
How much of the ceiling do I need to cover?
It depends on the room volume, the finishes and the target reverberation time. As a first pass, a Seem 1 Acoustic array at 12" on center adds about 1.26 Sabins per square foot of array; at 24" on center, about 0.72. The estimator on this page runs the arithmetic; Focal Point’s acoustic team runs the real calculation from your drawings.
What is the difference between NRC and Sabins?
NRC is a single-number average absorption coefficient for a flat surface, useful for comparing tiles. Sabins is absorption per unit and is what goes into the reverberation formula. Baffles and pendants absorb on every face, so Focal Point publishes their performance in Sabins per unit rather than NRC.
Is the felt fire rated?
Yes. ASTM E-84 Class A and CAN/ULC S102, flame spread 0, smoke developed 300. Test reports are available from Focal Point.
Can I get it fast?
Seem 1 Acoustic in all four versions, AirCore Blade and all three TruTile lines are on Focal Point’s 10-day Quickship program. The rest of the family is made to order in Chicago.
Can the baffles be cut in the field?
No. Baffles, blades and Trio arms are ordered at finished length. TruTile wall tiles are field-cuttable.
Does it count toward LEED or WELL?
The PET felt is Declare labelled and LBC Red List Free, which supports LEED v4.1 and WELL material credits, and the absorption itself supports the acoustic-comfort credits in both programs.
Is it Buy American?
Every acoustic product carries the Buy American Act designation, and the family lists BABA and DOT Buy America. It is manufactured in Chicago.
Can I match the felt to the light fixtures?
Yes. The Naturals collection puts the same Light Oak, Gray Elm, Chestnut and Walnut on felt and on luminaire housings, canopies and ID+ cylinders, so a baffle and a downlight in the same ceiling read as one finish.
Who represents Focal Point in South Florida?
SESCO Lighting holds Focal Point for Miami-Dade, Broward, Palm Beach and Monroe, and I am the specification rep. Send me the room and I will run it with Focal Point’s acoustic team.
— AirCore, PET, NRC vs Sabins, mounting, lengths132 KBPDFAcoustic materials color chart — standard, premium, Cosmic, The Naturals1777 KBPDFContractor brochure — mounting options, Contractor Zone, purchasing1780 KBPDFPET felt cleaning and care159 KBPDFCosmic collection brochure — five printed colorways2382 KBPDFThe Naturals brochure — wood and linen finishes2978 KBLINKDesigning with integrated lighting & acoustic solutions — 82-page design guide (Focal Point, 17 MB)focalpointlights.comLINKAcoustic Lookbook — installed photography (Focal Point, 58 MB)focalpointlights.comLINKFocal Point Acoustic Solutions — all 44 product pages, IES files and C423 reportsfocalpointlights.comThe problem
Why the ceiling is where the echo lives
Every South Florida office built in the last ten years has the same section: polished concrete or LVT, a glass front wall, exposed deck, and a lot of people on calls. Hard surfaces reflect; the room rings. Sound can be absorbed, blocked or covered up, and only the first one fixes reverberation. Blocking is walls and doors, which an open plan has already decided against. Covering up is sound masking, which raises the noise floor to hide the problem. Absorption takes the reflected energy out of the room, and the largest unobstructed surface in the room to hang absorption from is the ceiling — which is also where the lighting already is. That is the whole idea of the line: the baffle you were going to specify for the sound and the linear luminaire you were going to specify for the light are the same object.
Reverberation time (RT60)
The seconds it takes a sound to fall 60 dB after the source stops. A conference room at 1.1 seconds is the “fishbowl” nobody wants to use; the same room at 0.8 works. RT60 = 0.049 × volume ÷ total Sabins, in feet.
NRC
The average absorption coefficient at 250, 500, 1000 and 2000 Hz, 0 to 1, for a flat surface. Fine for comparing two ceiling tiles. It undercounts a baffle, which absorbs on both faces and the edges — a 3D object can test above 1.
Sabins
Absorption per unit — one square foot of perfect absorber is one Sabin. This is the number that goes into the RT60 formula and the one Focal Point publishes per baffle, tile and pendant from Riverbank laboratory tests, so a layout can be added up.
| Same 32 sq ft of surface | Coverage | NRC | Sabins delivered |
|---|---|---|---|
| One 4' × 8' sheet of drywall | 32 sq ft | 0.08 | 2.56 |
| Four 1' × 8' Seem 1 Acoustic baffles | 32 sq ft | 1.05 | 33.6 |
Manufacturer example from the Acoustic Solutions
What is acoustic lighting?
A luminaire built into or wrapped in a sound-absorbing material, so the fixture that lights the room also absorbs the reflected sound that makes it echo. Focal Point does it with PET felt baffles, tiles and pendants around its own Seem, Skydome and ID+ optics, tested and published in Sabins per unit.
How much of the ceiling do I need to cover?
It depends on the room volume, the finishes and the target reverberation time. As a first pass, a Seem 1 Acoustic array at 12" on center adds about 1.26 Sabins per square foot of array; at 24" on center, about 0.72. The estimator on this page runs the arithmetic; Focal Point’s acoustic team runs the real calculation from your drawings.
What is the difference between NRC and Sabins?
NRC is a single-number average absorption coefficient for a flat surface, useful for comparing tiles. Sabins is absorption per unit and is what goes into the reverberation formula. Baffles and pendants absorb on every face, so Focal Point publishes their performance in Sabins per unit rather than NRC.
Is the felt fire rated?
Yes. ASTM E-84 Class A and CAN/ULC S102, flame spread 0, smoke developed 300. Test reports are available from Focal Point.
Can I get it fast?
Seem 1 Acoustic in all four versions, AirCore Blade and all three TruTile lines are on Focal Point’s 10-day Quickship program. The rest of the family is made to order in Chicago.
Can the baffles be cut in the field?
No. Baffles, blades and Trio arms are ordered at finished length. TruTile wall tiles are field-cuttable.
Does it count toward LEED or WELL?
The PET felt is Declare labelled and LBC Red List Free, which supports LEED v4.1 and WELL material credits, and the absorption itself supports the acoustic-comfort credits in both programs.
Is it Buy American?
Every acoustic product carries the Buy American Act designation, and the family lists BABA and DOT Buy America. It is manufactured in Chicago.
Can I match the felt to the light fixtures?
Yes. The Naturals collection puts the same Light Oak, Gray Elm, Chestnut and Walnut on felt and on luminaire housings, canopies and ID+ cylinders, so a baffle and a downlight in the same ceiling read as one finish.
Who represents Focal Point in South Florida?
SESCO Lighting holds Focal Point for Miami-Dade, Broward, Palm Beach and Monroe, and I am the specification rep. Send me the room and I will run it with Focal Point’s acoustic team.
. Thirteen times the absorption for the same footprint, and the baffles are also the light fixture.WELL v2 and LEED v4.1 both carry reverberation and acoustic-comfort credits, and ANSI S12.60 sets 0.6–0.7 seconds for classrooms. Nothing in the Florida Building Code makes you treat a room acoustically. What makes you do it is the tenant calling six weeks after move-in.
Estimator
Run your room: current RT60, target, and how much Focal Point felt gets you there
This is the same Sabine arithmetic Focal Point walks through in its design guide, with typical absorption values for common finishes and the manufacturer’s published Sabins-per-square-foot figures for its baffle arrays. It is an estimate for a first conversation, not a report — for that, Focal Point’s acoustic team runs the room properly and I hand you the layout.
1. The room
2. What the room is made of
3. Add Focal Point
Enter the room.
Method: RT60 = 0.049 × V ÷ A (Sabine, feet). Existing absorption uses typical published NRC values for the finishes listed; furniture and people are added as a flat allowance. Array figures are Focal Point’s design-guide values at 1000 Hz for a 14' ceiling. The Nivo figure is derived from the guide’s 3,840 sq ft conference example (638 Sabins). Small rooms under about 1,500 cu ft do not reverberate in a way this formula describes well; treat those by surface area instead, which is exactly what Focal Point did on the CSHQA job below.
Family 1 of 5 · Linear architectural systems

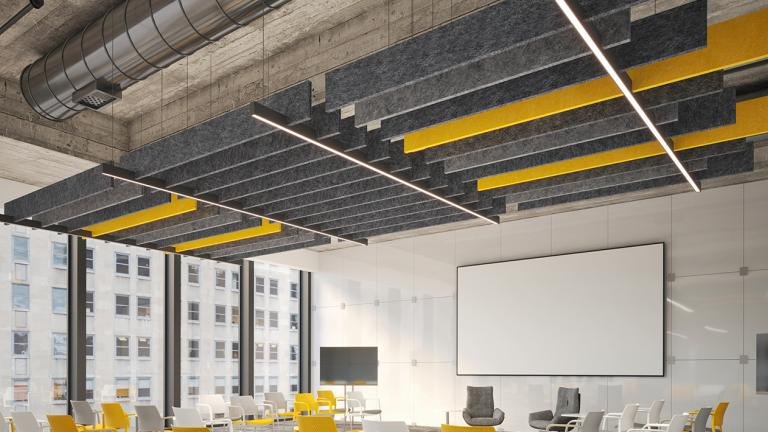

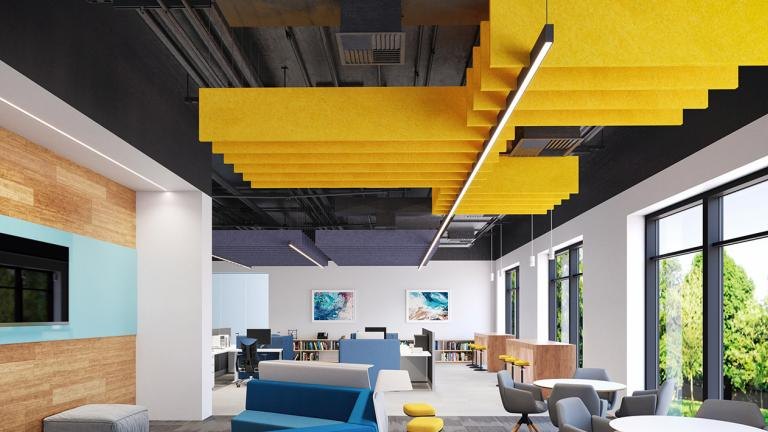

Lit and unlit baffles: Seem 1 Acoustic, Seem 2 Acoustic, AirCore Blade, TruBlade

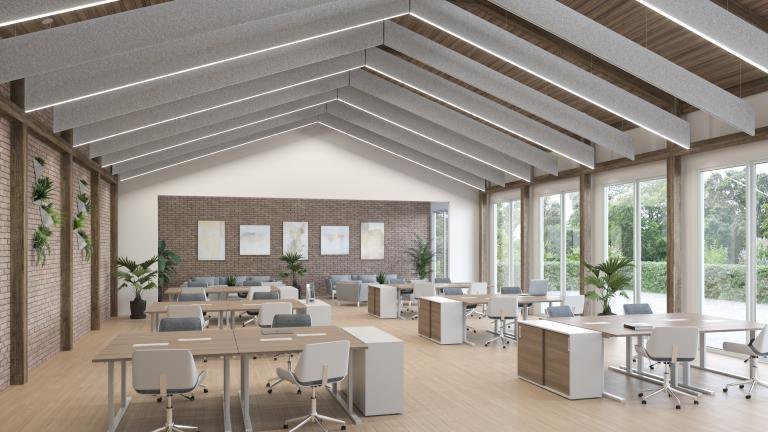

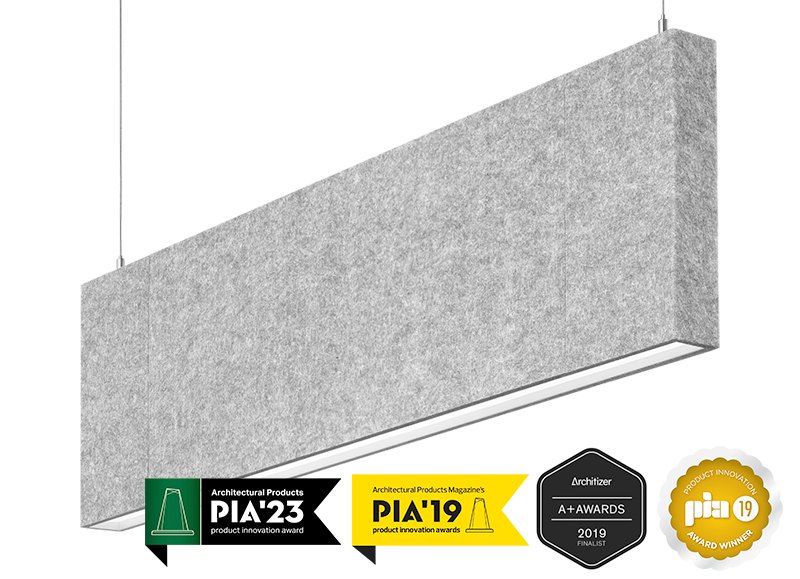

The core of the line. A Seem 1 Acoustic is a Seem 1 linear luminaire — 1.5" aperture, regress or batwing lens, 3000/3500/4000K, 0-10V, DALI or EcoSystem — carried inside an 8", 12" or 16" tall PET felt baffle, lit or unlit, in any length from 2' to 208' in 1" increments, with fully illuminated 90° corners so a run can turn into an L, a U or a rectangle without a break in the light. The unlit baffles between the lit ones are the same felt in the same height and color, so the ceiling reads as one system. AirCore Blade and TruBlade are the economy fill: thinner unlit blades in the same heights that carry the acoustic load between fewer luminaires.
10-day QuickshipBAADeclare
The 1.5" aperture Seem 1 in an 8, 12 or 16 inch felt baffle. Direct, direct/indirect, indirect only, louvered, or unlit.
- Up to 500 lm/ft direct, 1,000 lm/ft louvered, 800 lm/ft indirect
- 2' to 208' in 1" increments, lit 90° corners
- Cable, direct-to-grid or direct-to-strut
- 0-10V, DALI, Lutron EcoSystem
BAADeclare

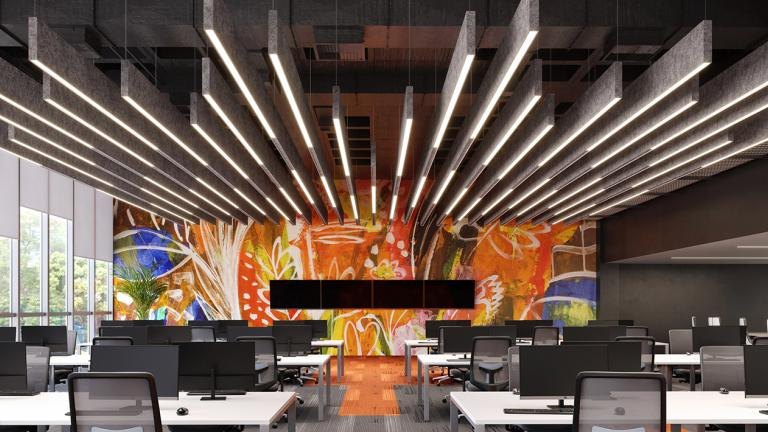

The 2.5" aperture version. More lumens per foot means fewer luminaires at wider spacing for the same footcandles, with unlit baffles filling in.
- Up to 1,200 lm/ft direct, 1,000 lm/ft indirect
- 3.24" housing in the same 8/12/16" baffle heights
- 10' o.c. gives 52 fc at 2.5' AFF in the guide example
- 0-10V, DALI, EcoSystem
BAA
ID+ louver cells in the baffle: 20° to 67° beams with a deep 60° regress, in a choice of louver finishes, independently controlled from the indirect.
- Narrow flood 20°, flood 29° / 43°, wide flood 67°, mixing chamber 68°
- Runs to 208' in 6" increments
- Louver finishes: black specular, matte black, clear specular, clear diffuse, matte white
10-day QuickshipBAADeclare

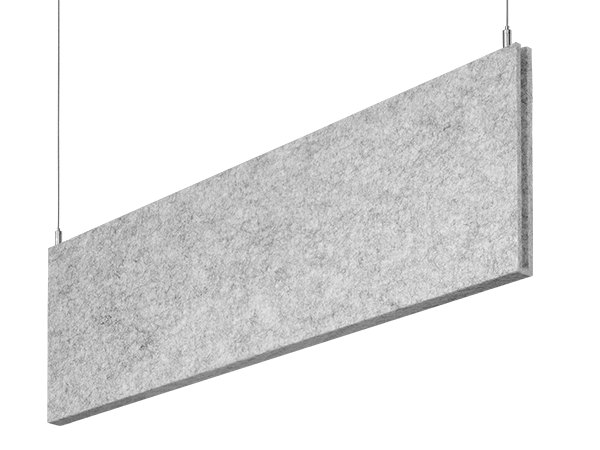

A 1.08" thick unlit felt blade in the same three heights, 2' to 8' long in 1" steps. The workhorse fill between lit Seem 1 runs, and the baffle in the AirCore Bridge systems.
- 8", 12" or 16" heights
- Cable, direct-to-grid, direct-to-strut
- Patented AirCore construction — more absorption per pound
BAA

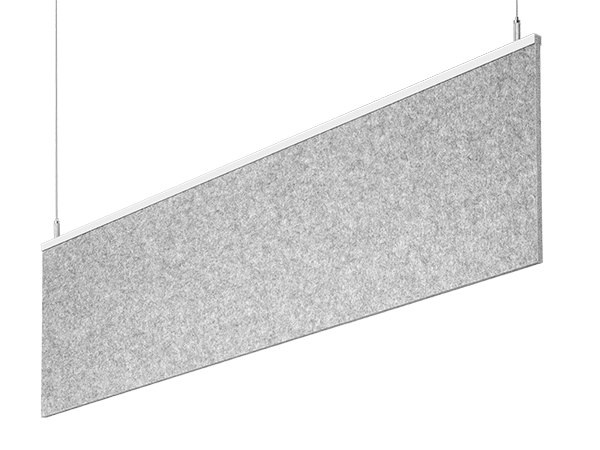

A 9 mm solid felt blade with a metal top extrusion that keeps it straight. Densest, most economical fill: 4", 6" or 12" on center, StrutKlip, magnet or cable.
- 8", 12" or 16" heights, 2' to 8' long
- StrutKlip and magnet mounting to strut
- The blade in every Mora system
| Array (14' ceiling, 35' × 50' room) | Spacing | Sabins / sq ft | What it is made of |
|---|---|---|---|
| Seem 1 Acoustic, medium density | 12" o.c. | 1.26 | (5) 45' lit + (29) 45' unlit baffles |
| Seem 1 Acoustic, low density | 24" o.c. | 0.72 | (5) 45' lit + (12) 45' unlit baffles |
| AirCore Blade + Seem 1 Acoustic | 12" o.c. | 0.80 | (5) 45' lit + (116) 8' AirCore Blades |
| TruBlade + Seem 1 Acoustic | 8" or 12" o.c. | 0.77 | (5) 45' lit + (184 or 116) 8' TruBlades |
Focal Point design guide, 12" baffle height, Sabins at 1000 Hz over a 1,494 sq ft array. These are the numbers in the estimator above.
Baffles are not field-cuttable. Every length is ordered as the finished length, so the run has to be dimensioned before release — L legs 5' minimum, U and rectangle legs 6' minimum. I check the shop drawing against the RCP before the order goes in.
Family 2 of 5 · Integrated ceiling systems
AirCore Bridge and Mora: the baffles become a ceiling

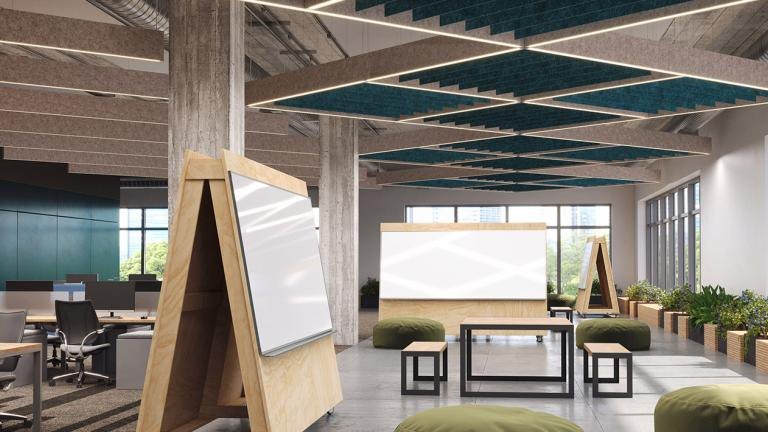

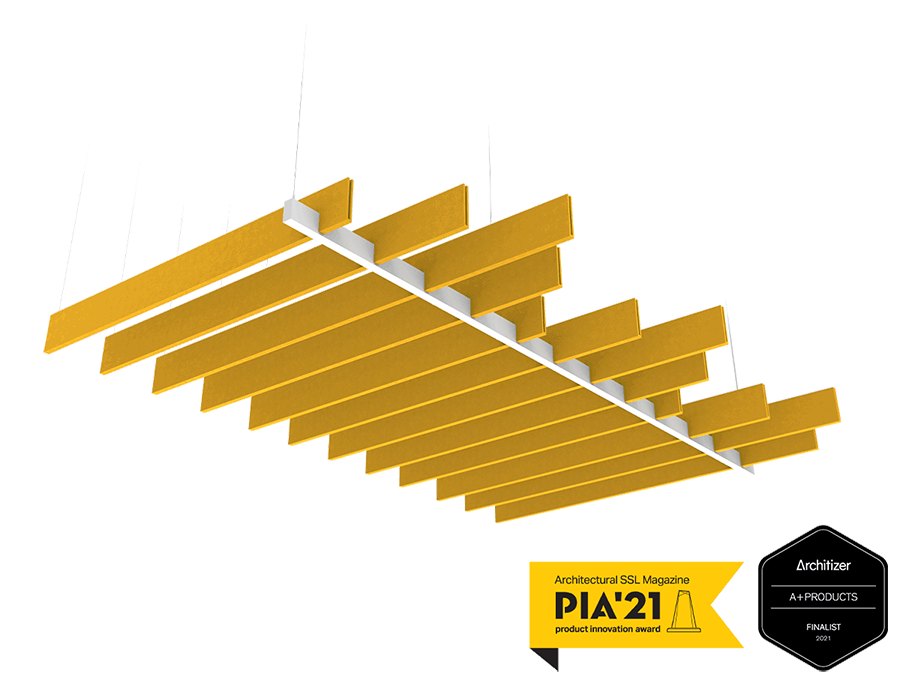

Two ways to get a designed ceiling out of standard parts. AirCore Bridge rests AirCore Blades on Seem 1 luminaires so the blades need one suspension point or none; Mora hangs TruBlades from a Seem 1 Acoustic in arches, waves and mountain profiles, either as square modules you tile across a ceiling or as one array cut to the room. Both are specified from a cut sheet, not designed from scratch, which is what makes them affordable.
BAAPoE
Three standard configurations. Truss: two Seem 1 luminaires carry the blades, no baffle suspension at all. Cantilever: one luminaire and one cable per blade. Cantilever Wave: varied blade lengths for a ragged edge.
- Luminaires 4', 5', 6' or 7' on center
- Blades 5'–8', 8/12/16" high, 12/18/24" o.c.
- Seem 1 suspended direct, 125–625 lm/ft, PoE compatible
BAA

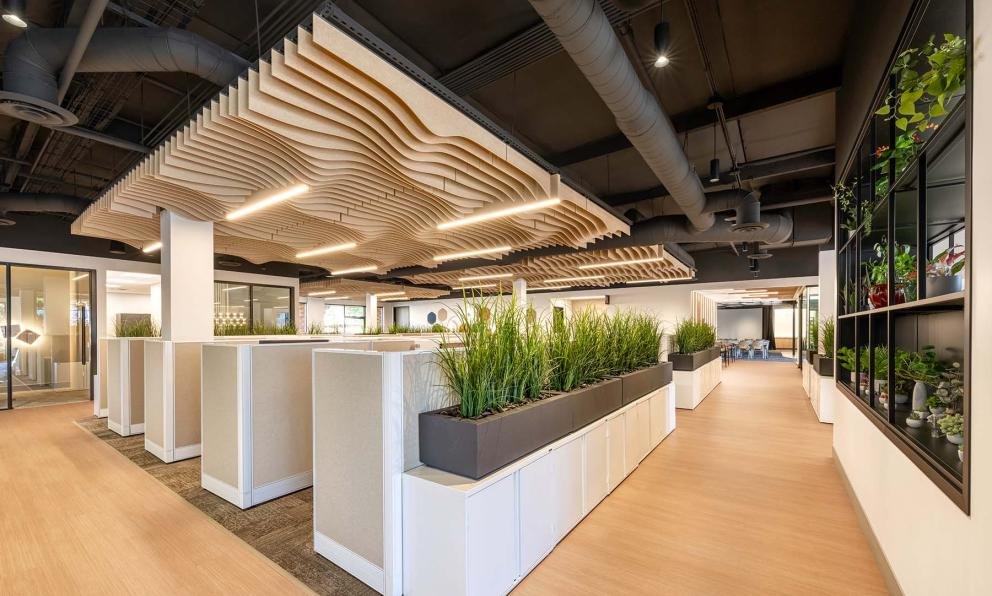

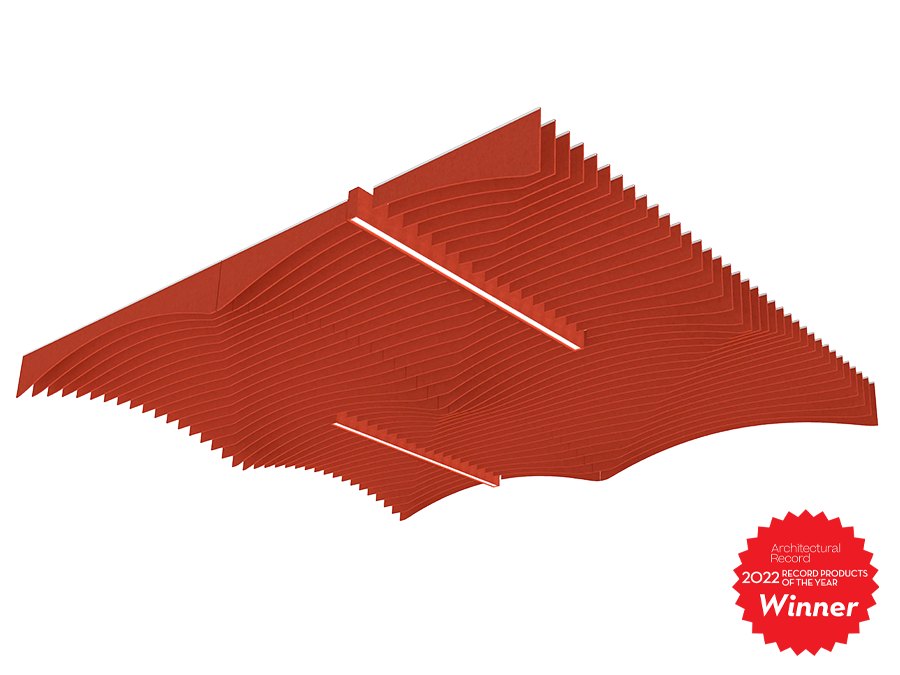

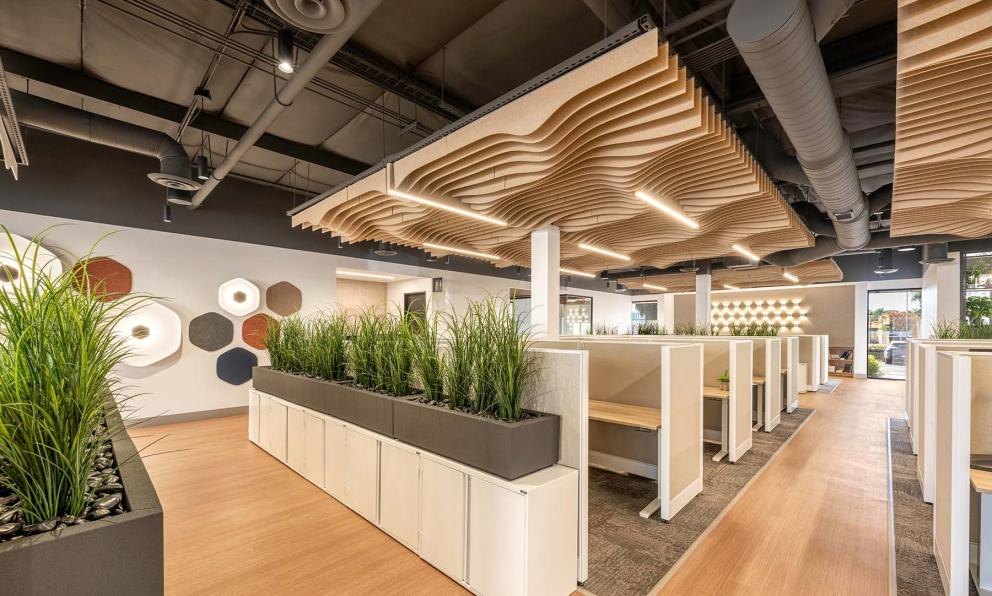

Square modules from 4' × 4' to 8' × 8', lit or unlit, in an Arch or a Wave profile, A or B style. Tile them across a large ceiling; the luminaire spacing follows the module size.
- 4', 5', 6', 7', 8' modules
- TruBlades at 4", 6" or 12" o.c.
- Seem 1 Acoustic direct, 100–500 lm/ft, 80 or 90 CRI
BAA

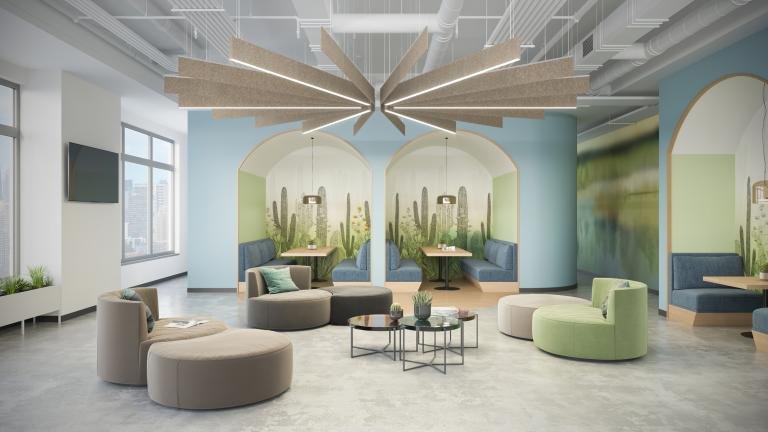

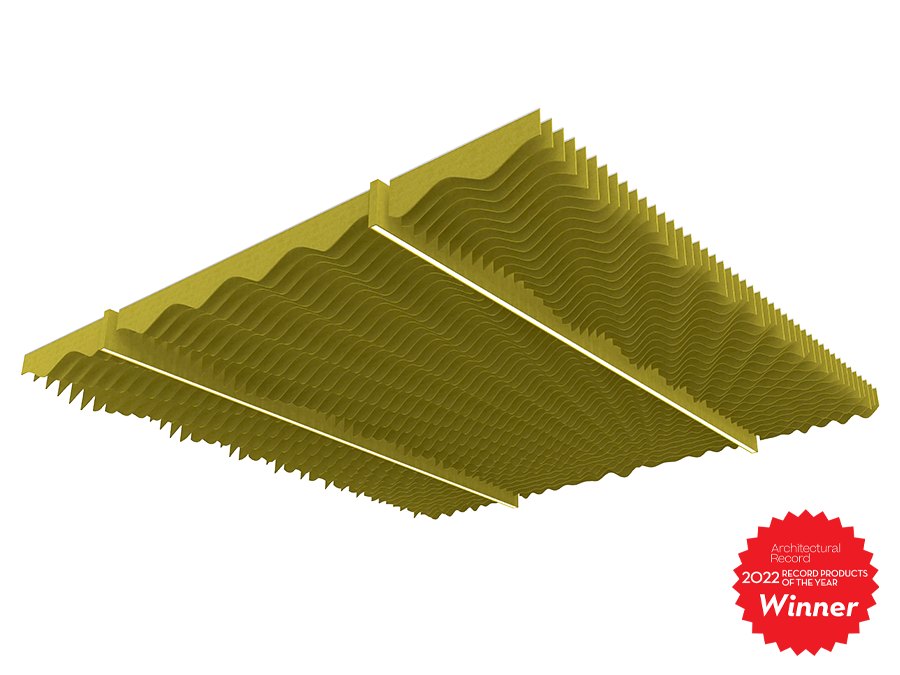

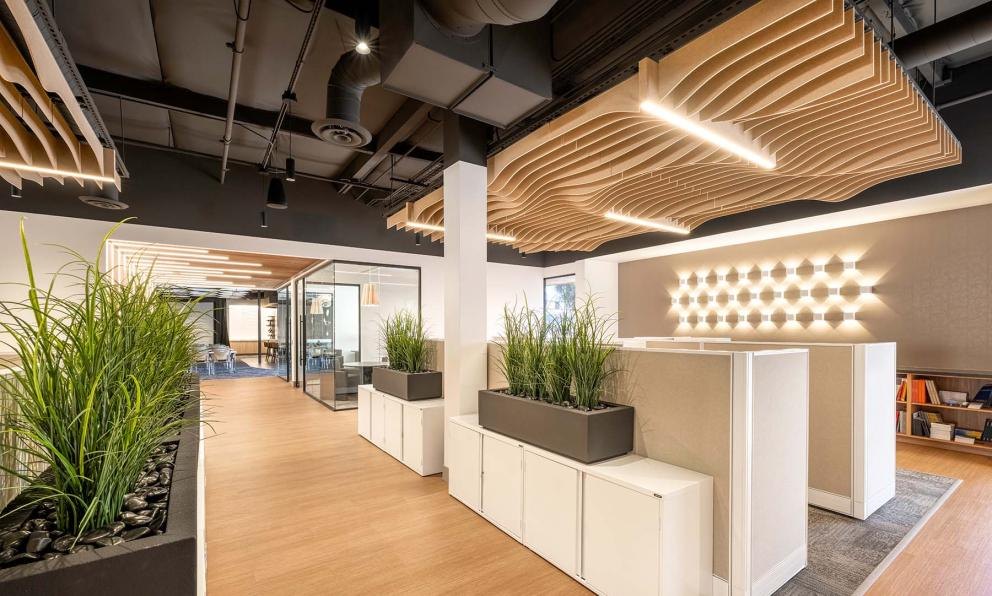

One array sized to the exact room: Alpine (angular peaks), Radiate (rays from a center), Ripple (concentric waves). Luminaires placed where the lighting calc needs them; submitted with a questionnaire.
- Scaled to any array length and width
- Guide examples: 30' × 20' office, 86' × 35' atrium, 50' × 22' library
- Mora Inspire for a fully custom profile
Families 3 and 4 of 5 · Ceiling tiles and wall tiles
Nivo Acoustic, Ori and TruTile: the grid and the wall

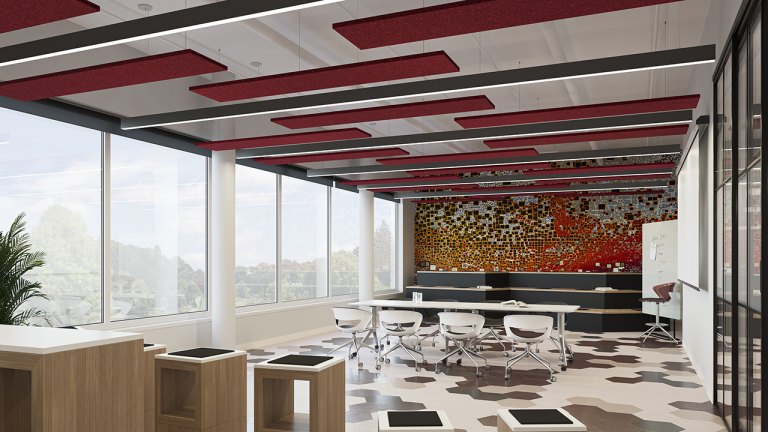

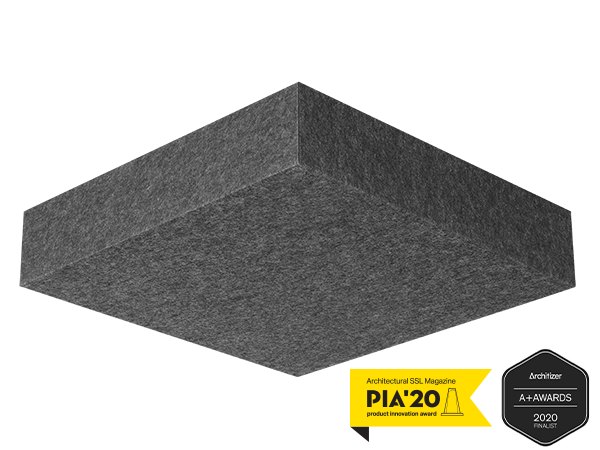

For the job that already has a 15/16" or 9/16" grid, or wants one. Nivo Acoustic is the felt companion to the Nivo architectural troffer: a 2' × 2' tile that drops from flush to 7" below the grid in 1" steps, so a cluster of tiles and troffers at different drops reads as a sculpted cloud. Ori is the same idea with ten folded geometries. Both are cut and folded, not thermoformed, so the edges stay crisp, and both carry a plenum option for Chicago-plenum (CCEA) ceilings. TruTile takes the same felt to the wall in 2' × 2' modules that are field-cuttable.
BAA

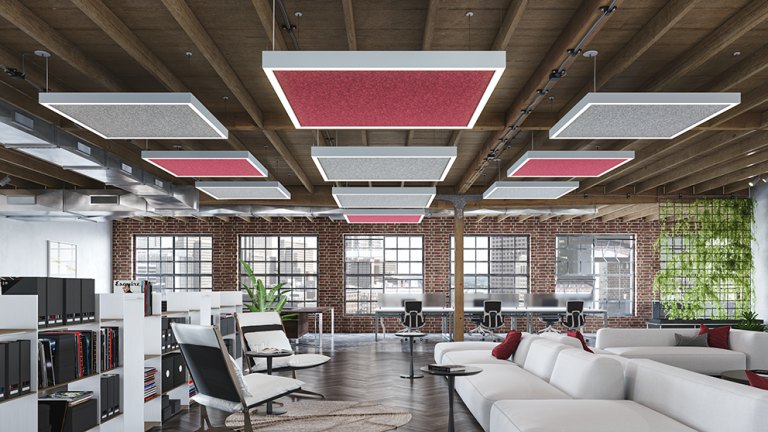

2' × 2' felt tile, flush to 7" drop. Pair with the Nivo luminaire (up to 4,000 lm, 0-10V or EcoSystem, PoE) at matching drops.
- 9/16" and 15/16" T-grid; drywall with ACT transition; clouds
- Plenum option: 2015 IMC 602.2, 2018 NFPA 90A
- Guide example: 3,840 sq ft room from 0.83 s to 0.29 s
BAA

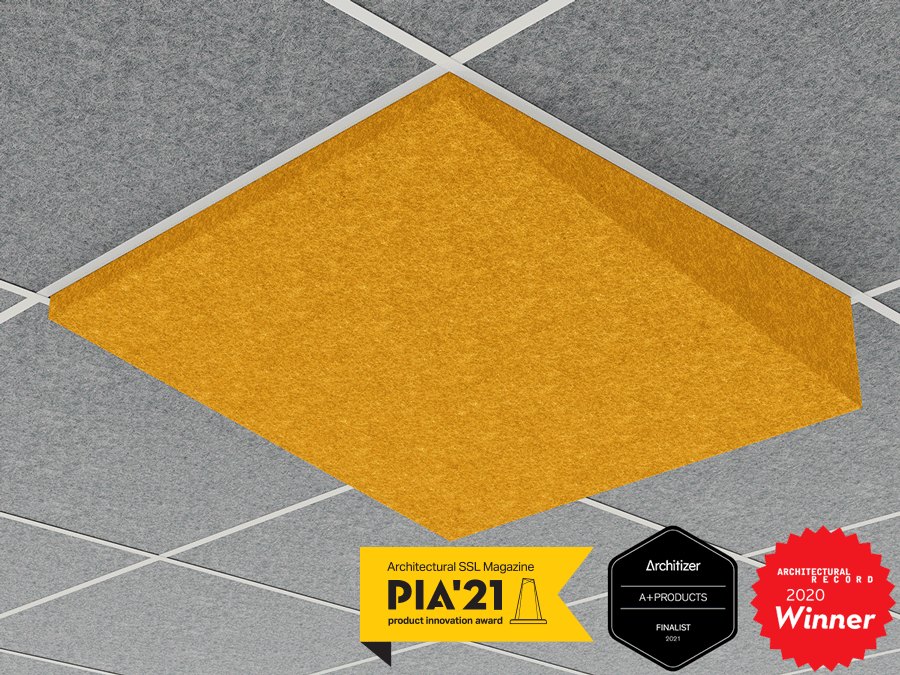

Ten variations — Simple Slope 1 and 2, Dynamic Slope 1 and 2, Valley 1 and 2, Plateau 1 and 2, Peak, Plain — that combine into ridges, checkers and random fields with troffers, downlights or linear recessed.
- 2' × 2' standard, custom sizes on request
- Integrates with ID+ downlights, Seem 4 recessed, Nivo
- Plenum option available
10-day QuickshipBAA

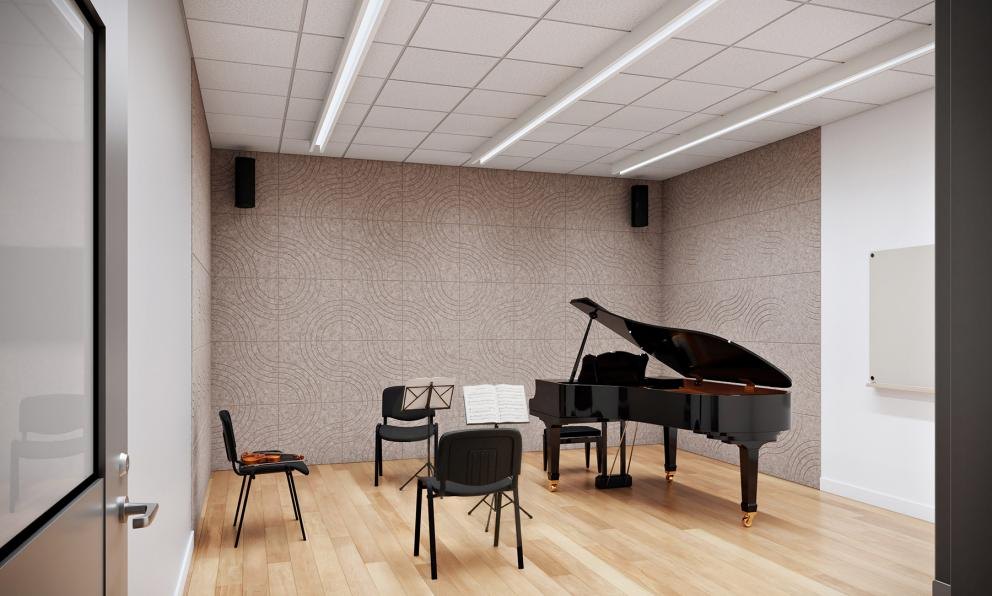

2' × 2' PET felt wall tiles, 9 mm, NRC 0.3 each, field-cuttable. Designs (Wide Rule, Wide Slant, Wide Arc, Multitrack, Double Arc, Diamond, Willow), Textures (Pinwale, Feathercord, Lattice, Grid 49) and Shapes (Gem, Scallop, Star).
- Same color palette as every ceiling product
- Vertical, horizontal and angled patterns
- Quickship on all three
Family 5 of 5 · Acoustic and decorative pendants

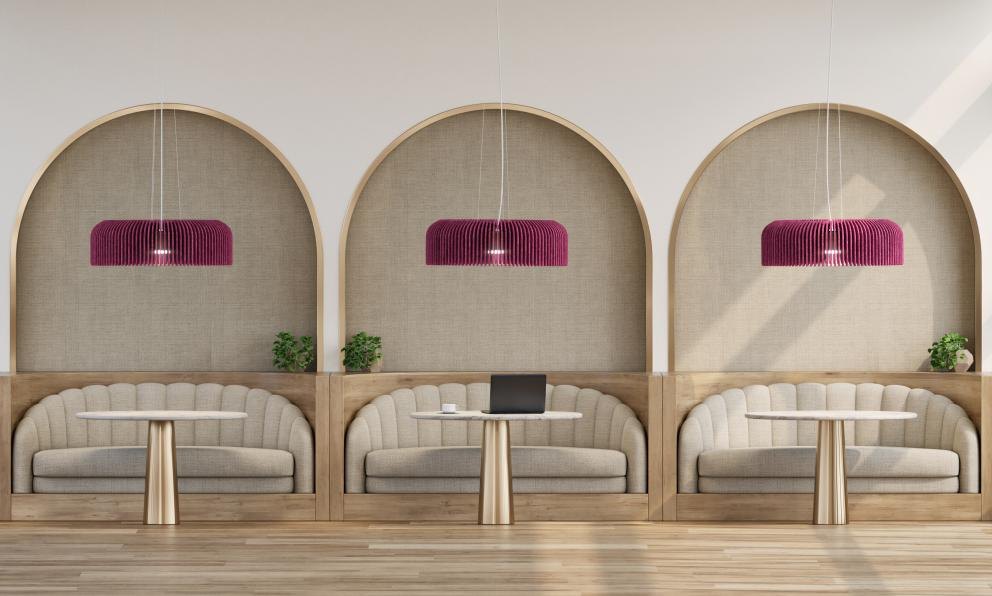

Pendants that absorb: Plyta, Polina, Seem 1 Acoustic Trio, Skydome Edge, Lia, Eave, Blume and Zyl
Where a baffle field is too much and a bare pendant does nothing for the sound. Every one of these is a real luminaire — ID+ cylinders, Skydome engines, Seem 1 optics — wrapped in felt that is tested and published in Sabins per unit, and every one has an unlit twin so the pattern can continue past the light.
BAA

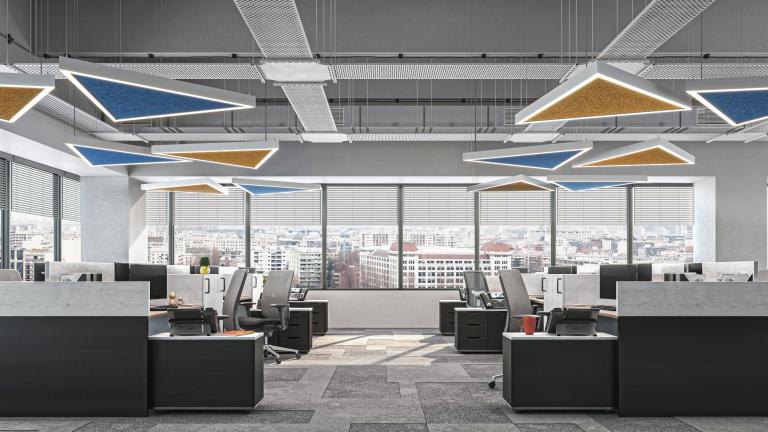

24", 36" and 48" two-layer felt shades with chamfered edges and a two-tone option, lit by an integrated ID+ 3.5" Pure Cylinder to 2,300 lm, or unlit.
- Mini Power Canopy; cables 24–120"
- Engine and canopy in white, black or Palladium Silver
- Three shapes cluster at mixed heights
BAA

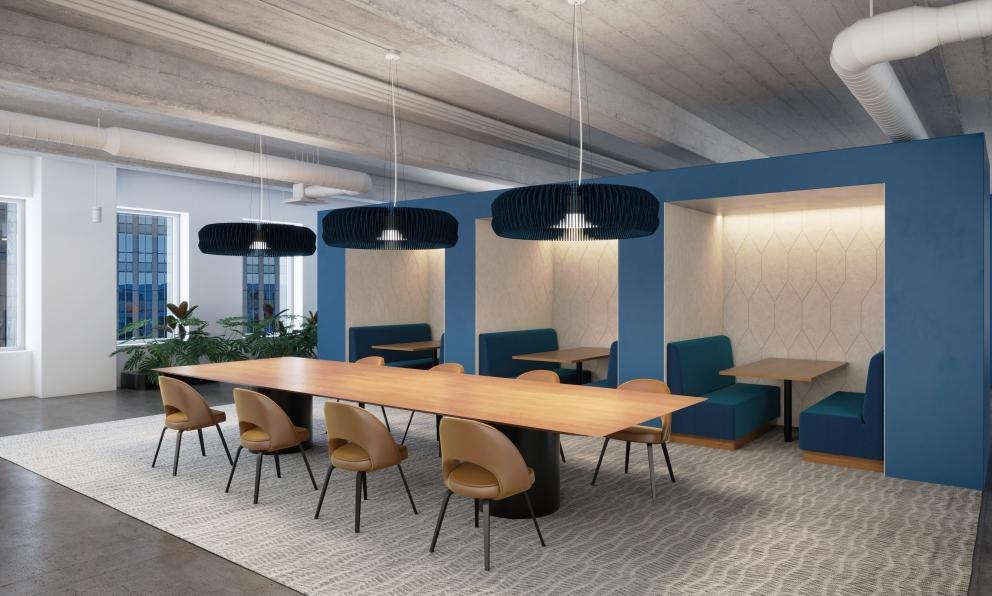

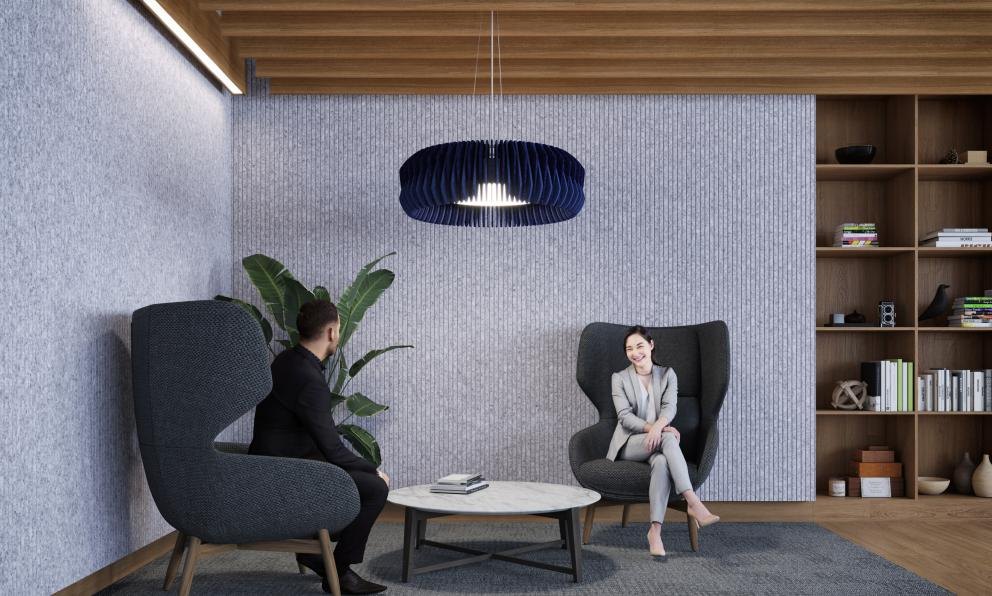

27" or 42" diameter, TriCore three-layer felt shade with a white domed reflector. Pendant, unlit pendant, sconce or unlit wall mount; the wall version is under 4" deep and ADA compliant.
- Field-cuttable stem to 72"
- Matte black, matte white or Palladium Silver hardware
- Mini Power Canopy or Remote Power System
BAA
Three Seem 1 Acoustic arms in a Y, 4' or 6' across, 8/12/16" high, direct, direct/indirect, indirect or unlit. Tiles into Geo-Y, Hive and Staggered Hex fields.
- Up to 4,500 lm direct, 7,200 lm indirect
- 9.8 Sabins per unit at 12" height (guide, Geo-Y)
- Matches Seem 1 Acoustic runs and baffles
BAA

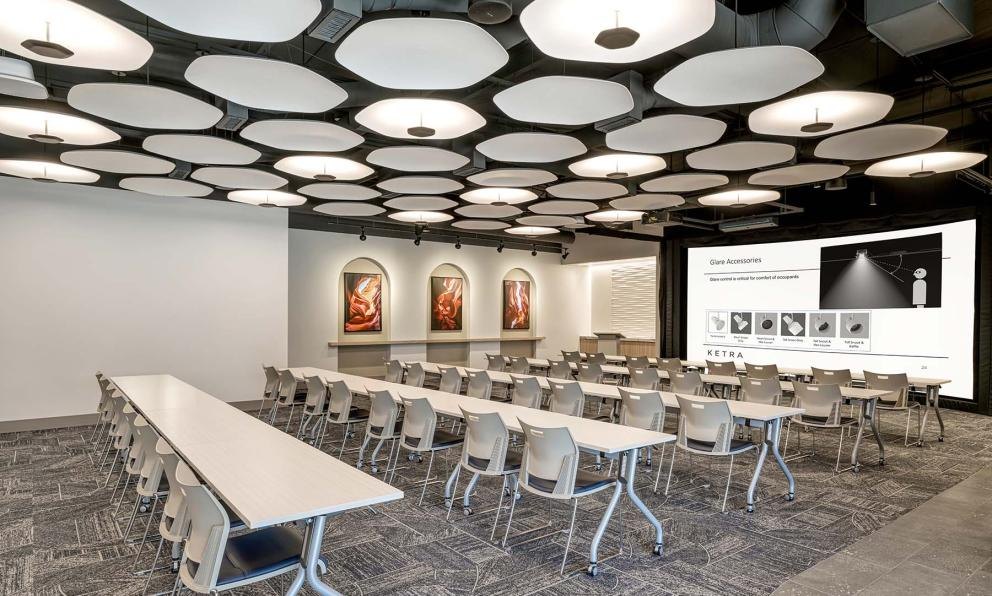

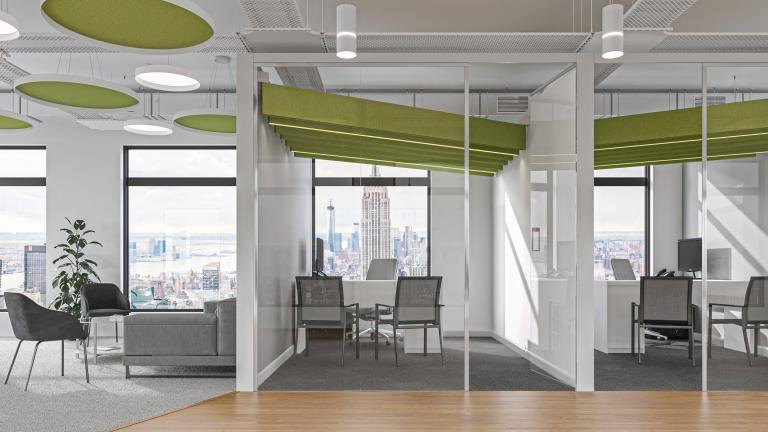

2', 3' or 4' felt discs, up to 3.6" tall, suspended or surface mounted, in any RAL color, paired with the Skydome Edge luminaire (to 14,000 lm, 80 or 90 CRI, PoE).
- Three standard finishes or custom RAL
- Surface-mount version for low ceilings
- The Coupang Seattle office cloud system
BAAPoENew

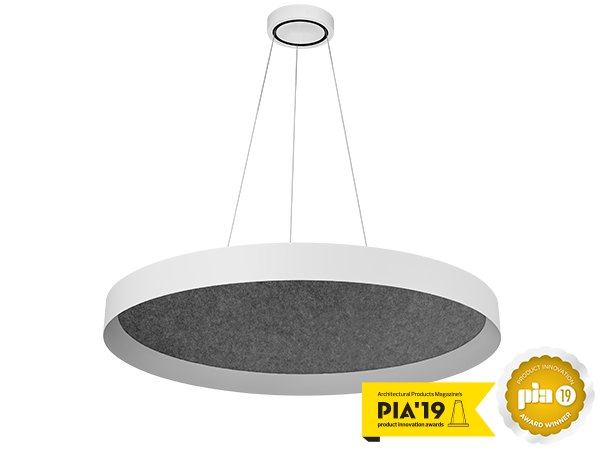

3', 4' or 5' felt shades, 12" or 18" tall, in three new profiles over a direct or indirect engine: 1,000–17,000 lm depending on shade and engine.
- Housings in black, white, Titanium Silver, Modest Mushroom
- PoE compatible
- Three profiles in one family for a mixed cluster
BAA

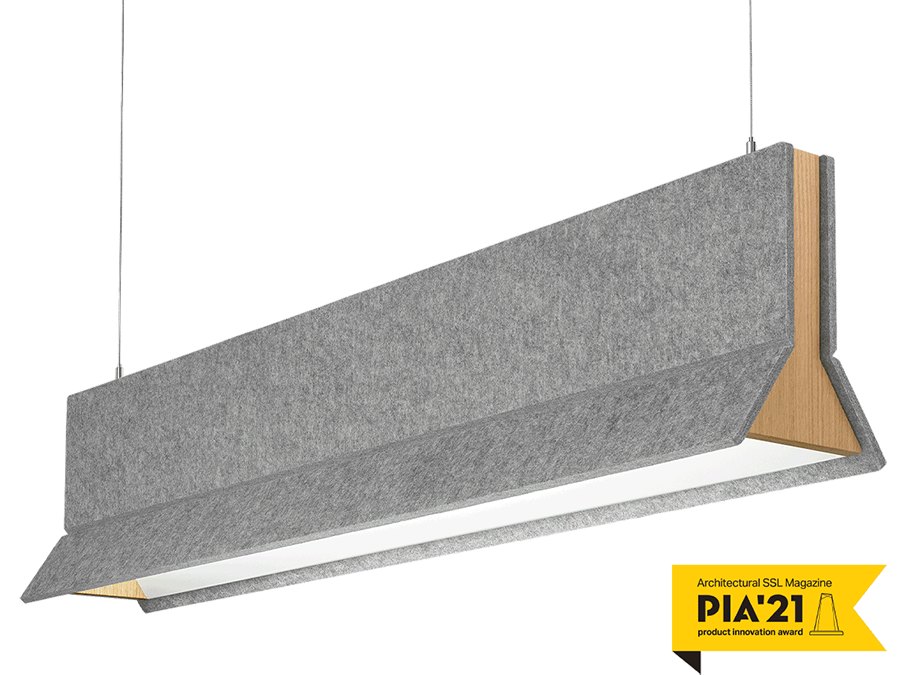

An 11" tall linear felt pendant, 3' to 6' long, with real wood end caps and canopy in White, Amber or Espresso Oak, or painted. Lambertian or batwing indirect to 800 lm/ft, direct to 700 lm/ft.
- Grid, drywall and open ceilings
- 0-10V, DALI, EcoSystem
BAA

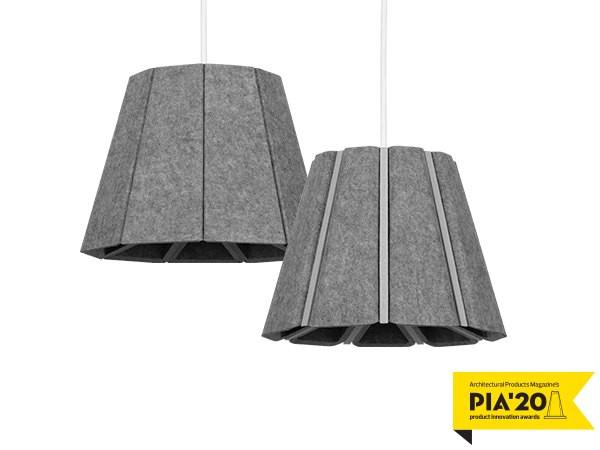

12" and 19" felt domes in Solid or Pinstripe, spot to super-wide flood, 700–3,000 lm, hundreds of felt, canopy, stem and cord combinations.
- SJT cable to 144" or 50° swivel stem to 8'
- 0-10V, DALI, EcoSystem
BAA
8" and 12" felt cylinders, three heights each, Solid or Pinstripe, same engines and distributions as Blume.
- Grid, drywall and open ceilings
- Mix with Blume in a cluster
In the room
What it looks like installed
Focal Point application imagery, by family. Most South Florida jobs I see for this line are open offices, conference rooms, training rooms, lobbies and restaurants — the rooms with the glass, the concrete and the complaints.
Material
One PET felt, 33 colorways, every product
Everything on this page is cut from the same 9 mm polyester felt: 100% PET containing up to 50% post-consumer recycled bottles, fully recyclable, formaldehyde free, moisture and bacteria resistant, ASTM E-84 Class A (flame spread 0, smoke developed 300) and CAN/ULC S102. Colorfastness AATCC 16A Option 3 Class 4 at 40 hours. It vacuums; spills blot with a damp cloth; for infection control it takes a CDC-ratio bleach mist. The point of one material is that a Seem 1 baffle, an Ori tile, a TruTile wall and a Polina sconce in the same room match exactly.
Standard · 9
Premium · 14
Cosmic · 5 printed
Five celestial prints on the same felt, each with a coordinating set of solids: Blue Star, Green Quasar, Moon Rock, Pink Nebula, Solar Flare. No acoustic penalty against solid felt. Select products.
The Naturals · 5 wood and linen
Wood-grain and linen prints matched to the same finishes on Focal Point luminaire housings, canopies and ID+ cylinders, so a felt baffle and a metal downlight in the same ceiling read as one wood. Select products.
Slight color variation is inherent to felt. Samples come from focalpointlights.com/samples, or ask me and I will bring the ring.
Specifying
What is on the label, and how the order has to be written
| Item | What it means on the job |
|---|---|
| ASTM E-84 Class A / CAN ULC S102 | The felt passes as an interior finish under the Florida Building Code. Flame spread 0, smoke 300. Test reports download from Focal Point. |
| Declare · Red List Free | The PET is Declare labelled and LBC Red List Free, which counts toward LEED v4.1 and WELL material credits. The label is printed on every acoustic cut sheet. |
| Buy American Act · BABA · DOT Buy America | Every acoustic product carries BAA; the family also lists BABA and DOT Buy America. Made in Chicago, which matters on federally funded, school and transit work. |
| Plenum (CCEA) | Nivo Acoustic and Ori have a plenum option meeting 2015 IMC 602.2 and 2018 NFPA 90A for Chicago-plenum ceilings. |
| Riverbank test data | Every product is tested at Riverbank Acoustical Laboratories and the ASTM C423 report is on the product page, so an acoustician can use the real numbers. |
| Quickship · 10 days | Seem 1 Acoustic (direct, direct/indirect, indirect, unlit), AirCore Blade and all three TruTile lines ship in ten days. Everything else is made to order. |
| PoE | AirCore Bridge, Lia, Nivo and Skydome Edge luminaires are PoE compatible. |
Lengths are final
Baffles, blades and Trio arms are not field-cuttable. Order the finished length. I check every run against the RCP and the grid before release; the contractor brochure says the same thing from the other side of the ceiling.
Mounting
Cable to 120" (144" on Plyta, Blume and Zyl), direct-to-grid, direct-to-strut, StrutKlip and magnet on TruBlade, surface on Skydome Edge, stem on Polina, hardware-by-others when the ceiling contractor wants it that way.
Two spec sections
Unlit felt goes in Division 09 as 09 84 36 Sound-Absorbing Ceiling Units; lit product goes in Division 26 as 26 51 19 LED Interior Lighting. Both are hosted above as editable Word files.
Field service
Lit acoustic products are field serviceable. Installation instructions ship in the box and live on each product page and Focal Point’s YouTube channel; the Contractor Zone on their site has the rest.
Custom
Custom heights, lengths, tile sizes and Mora Inspire profiles go through Focal Point’s acoustic team. I open the conversation and stay in it.
Purchasing
Ceiling contractors can buy the unlit product on their own package. Focal Point offers purchasing options for ceiling and electrical channels; I coordinate which side of the job carries what.
Proof
Three rooms with numbers
The fishbowl
12' × 10' × 12', concrete and carpet, three gypsum walls, one glass, exposed deck. RT60 measured 1.12 s; unusable for calls. Room too small for a useful RT analysis, so the acoustician sized the baffle area from the Seem 1 Acoustic C423 report.
Four 8' × 16" Seem 1 Acoustic baffles at 24" o.c. on the joist spacing: 25 Sabins added, RT60 0.8 s, and two lit baffles delivering 30–40 fc on the table.
One system for light and sound
Two floors, low ceilings removed to reveal structure, a great deal of glass. Thirty runs of 12" Seem 1 Acoustic direct luminaires and baffles at 12" o.c. across the first-floor training room; a coffered effect over the conference table upstairs by hanging baffles at different heights.
Training room 0.85 s to 0.62 s; conference room 1.05 s to 0.76 s — about 30% off the reverberation time.
Twelve weeks, bold colors
Open structure, reflective finishes, surrounded by towers that blocked daylight, and a 12-week schedule. Skydome Edge luminaires for the lumens, Skydome Edge Acoustic discs in the brand colors for the sound, hung as one cloud system.
Illumination and absorption from the same round pendant, in a palette the client already owned.
Case studies from Focal Point’s design guide. Ask me for the South Florida references.
Questions
Questions I get about acoustic lighting
What is acoustic lighting?
A luminaire built into or wrapped in a sound-absorbing material, so the fixture that lights the room also absorbs the reflected sound that makes it echo. Focal Point does it with PET felt baffles, tiles and pendants around its own Seem, Skydome and ID+ optics, tested and published in Sabins per unit.
How much of the ceiling do I need to cover?
It depends on the room volume, the finishes and the target reverberation time. As a first pass, a Seem 1 Acoustic array at 12" on center adds about 1.26 Sabins per square foot of array; at 24" on center, about 0.72. The estimator on this page runs the arithmetic; Focal Point’s acoustic team runs the real calculation from your drawings.
What is the difference between NRC and Sabins?
NRC is a single-number average absorption coefficient for a flat surface, useful for comparing tiles. Sabins is absorption per unit and is what goes into the reverberation formula. Baffles and pendants absorb on every face, so Focal Point publishes their performance in Sabins per unit rather than NRC.
Is the felt fire rated?
Yes. ASTM E-84 Class A and CAN/ULC S102, flame spread 0, smoke developed 300. Test reports are available from Focal Point.
Can I get it fast?
Seem 1 Acoustic in all four versions, AirCore Blade and all three TruTile lines are on Focal Point’s 10-day Quickship program. The rest of the family is made to order in Chicago.
Can the baffles be cut in the field?
No. Baffles, blades and Trio arms are ordered at finished length. TruTile wall tiles are field-cuttable.
Does it count toward LEED or WELL?
The PET felt is Declare labelled and LBC Red List Free, which supports LEED v4.1 and WELL material credits, and the absorption itself supports the acoustic-comfort credits in both programs.
Is it Buy American?
Every acoustic product carries the Buy American Act designation, and the family lists BABA and DOT Buy America. It is manufactured in Chicago.
Can I match the felt to the light fixtures?
Yes. The Naturals collection puts the same Light Oak, Gray Elm, Chestnut and Walnut on felt and on luminaire housings, canopies and ID+ cylinders, so a baffle and a downlight in the same ceiling read as one finish.
Who represents Focal Point in South Florida?
SESCO Lighting holds Focal Point for Miami-Dade, Broward, Palm Beach and Monroe, and I am the specification rep. Send me the room and I will run it with Focal Point’s acoustic team.
Next step
Send me the room
Dimensions, ceiling height, what the room is for, and a photo or the RCP. I come back with a system, a layout with quantities, the lighting calc, and a price that holds through submittal — and if the job is not on the SESCO card at all, I will still tell you who has it.
Send me the room Back to the estimator Focal Point on the line card Linear & architectural lighting
