ConTech Gallery XL (CTL94)
The big one. A 5" cylinder in six wattages from 13 to 49 W, reaching 4,463 lumens, with a dual-lens optic that makes a true 8° very narrow spot and specular reflectors from 11° to 50°. DLC listed on the reflector models. An integrated rotary dimmer on the head, so one fixture can be trimmed without touching the control system. Standard, Xicato 95 CRI and warm dim engines. For the high ceiling, the long throw, and the wall too big for anything else on a track.
- 13–49 W
- to 4,463 lm
- 8° very narrow spot
- DLC reflector models
- Rotary dimmer option
- Xicato 95 CRI
- Warm dim 1800K
- 0–100° tilt
Documents
Spec sheets, drawings and files
The head
Built for throw

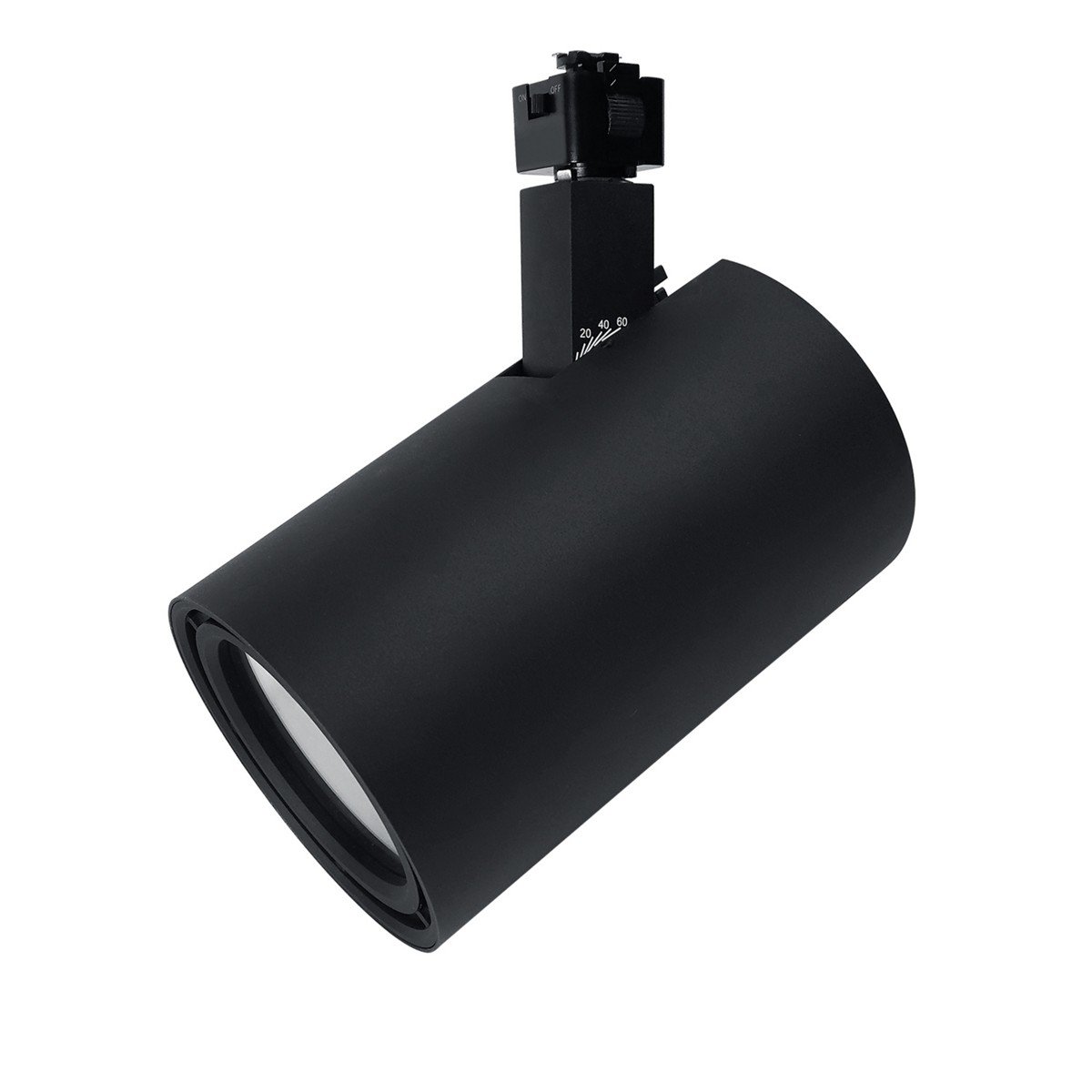

Gallery XL is a die-cast aluminium cylinder, 5" in diameter and 8" long, five pounds, on an adjustable, lockable aiming arm that tilts 0° to 100° and rotates 365°. Two optical systems live in the same body: a precision dual-lens optic for the 8° and 11° beams, designed to put light on a target with minimal spill, and specular aluminium reflectors for the 11° spot, 22° medium, 41° flood and 50° wide flood. Two accessory slots on the face. Integral on/off switch and polarity indicator.
| Diameter · length | 5" · 8" body; 9" overall at 0° tilt, 10-1/2" at 38°, 7-1/2" at 90° |
| Wattages | 13 W (940) · 20 W (941) · 29 W (942) · 38 W (943) · 42 W (944) · 49 W (945) |
| Optics | Very Narrow Spot 8° / 17° field · Narrow Spot 11° / 22° · Spot reflector 11° / 26° · Medium 22° / 52° · Flood 41° / 66° · Wide Flood 50° / 83° |
| CCT | 2700K · 3000K · 3500K · 4000K (warm dim: 3000K to 1800K) |
| CRI | Standard 83 (80 min) or 90+ · Xicato 95 · Warm dim 90 |
| Colour consistency | 3-step MacAdam ellipse |
| Dimming | 120V forward or reverse phase standard; integrated rotary dimmer option (DI); 0-10V on OTL and canopy versions |
| Listing | cCSAus, dry locations. DLC listed on all models using Spot, Medium, Flood and Wide Flood reflectors |
| Life · warranty | L70 at 50,000 hours · five-year replacement |
Output
Standard engine · 80 or 90+ CRI
Read the table before you pick the wattage. The 8° very narrow spot stops at 38 W and 1,550 lumens, because it is a lens system with a small source. The reflector beams run all the way to 49 W and 4,463 lumens. If the job is a long throw to a small object, you want the top of the first two rows; if it is a wall, you want the bottom of the last four.
| Beam | CTL940 · 13 W | CTL941 · 20 W | CTL942 · 29 W | CTL943 · 38 W | CTL944 · 42 W | CTL945 · 49 W |
|---|---|---|---|---|---|---|
| Very Narrow Spot Optic | 744 lm | 1,023 lm | 1,349 lm | 1,550 lm | — | — |
| Narrow Spot Optic | 702 lm | 1,033 lm | 1,462 lm | 1,793 lm | 1,949 lm | — |
| Spot Reflector | 1,283 lm | 1,885 lm | 2,646 lm | 3,288 lm | 3,609 lm | 4,010 lm |
| Medium Reflector | 1,365 lm | 2,005 lm | 2,816 lm | 3,660 lm | 3,839 lm | 4,266 lm |
| Flood Reflector | 1,428 lm | 2,098 lm | 2,946 lm | 3,696 lm | 4,017 lm | 4,463 lm |
| Wide Flood Reflector | 1,407 lm | 2,067 lm | 2,902 lm | 3,606 lm | 3,958 lm | 4,398 lm |
Approximate delivered lumens at 3000K, 80 CRI, from the CTL94 sheet. Very Narrow Spot to Series 3 only; Narrow Spot to Series 4. DLC listed on Spot, Medium, Flood and Wide Flood reflector models.
Colour
Xicato engine · 95 CRI
The Xicato 95 CRI series COB in the XL body, 13 to 41 W. The very narrow spot is only on the 13 W head here; everything else runs the full range. This is the museum configuration: a large head, a long throw, and colour that holds up under a curator.
| Beam | CTL940 · 13 W | CTL941 · 19 W | CTL942 · 27 W | CTL943 · 35 W | CTL944 · 41 W |
|---|---|---|---|---|---|
| Very Narrow Spot Optic | 610 lm | — | — | — | — |
| Narrow Spot Optic | 540 lm | 790 lm | 1,043 lm | 1,370 lm | 1,491 lm |
| Spot Reflector | 975 lm | 1,381 lm | 1,896 lm | 2,380 lm | 2,708 lm |
| Medium Reflector | 976 lm | 1,384 lm | 1,898 lm | 2,375 lm | 2,698 lm |
| Flood Reflector | 1,017 lm | 1,440 lm | 1,977 lm | 2,485 lm | 2,824 lm |
| Wide Flood Reflector | 984 lm | 1,393 lm | 1,912 lm | 2,404 lm | 2,732 lm |
Xicato 95 CRI. Approximate delivered lumens at 3000K. Very Narrow Spot on Series 0 only.
Warm dim
3000K to 1800K at CRI 90
Two wattages, 13 W and 35 W. The canopy-mount version of this head is the one damp-rated fixture in the whole family, which makes it the answer for a covered outdoor dining room that wants warm-dim cylinders.
| Beam | CTL940 · 13 W | CTL943 · 35 W |
|---|---|---|
| Very Narrow Spot Optic | 578 lm | — |
| Narrow Spot Optic | — | 1,209 lm |
| Spot Reflector | 864 lm | 2,032 lm |
| Medium Reflector | 855 lm | 2,291 lm |
| Flood Reflector | 894 lm | 2,374 lm |
| Wide Flood Reflector | 884 lm | 2,372 lm |
Warm dim 3000K to 1800K, CRI 90. Approximate delivered lumens at 3000K.
The knob
Integrated rotary dimmer
Order the driver as DI instead of D and each head carries its own rotary dimmer. In a store or a gallery that means a merchandiser or a preparator can trim one head against its neighbours from the ladder, with no control system and no electrician. ConTech's one rule: do not combine it with a track that is already on a wall dimmer. Pick one or the other. The knob is black on every finish.
This is the feature I point to when a retail client says their last track system was "too bright over there and too dim over here." The fix was never the fixture. It was that nobody could adjust one head without adjusting all of them.
The prefix
Which track it goes on
| Prefix | Track or mount | What it means on the job |
|---|---|---|
| CTL | ConTech LT / LT2 line-voltage track, Luxbeam, and Juno Trac-Master | The standard head. cCSAus certified as-is on ConTech track and on Juno single-circuit track, so an existing Juno run can take Gallery heads without an adapter. |
| HTL | Halo Power-Trac and Lazer Track | Same head, factory-fitted with the Halo insert. Ordered by changing the prefix, not by adding a part. |
| LTL | Lightolier Lytespan | Same again for Lightolier track. This is how a retrofit on old Lytespan gets spec-grade heads without replacing the track. |
| NCTL | Global / Nordic Aluminum 2C/2N (and 1C/1N, 3C/1N by adapter) | For the European-style multi-circuit track used on a lot of retail and museum work. 120V or 277V driver; 277V is non-dimming on the phase-dimmed heads. |
| OTL | ConTech O2CD 0-10V dimming track | Six-conductor track: two circuits plus a data bus. 120V or 277V, 0-10V dimming per head. The answer when the controls spec says 0-10V and the fixture spec says track. |
| C suffix | Canopy mount (monopoint) | The same optical head on a 4-1/2" canopy for ceiling or wall, with 0-10V available. No track at all — one head, one J-box. |
| RS suffix | Rigid stem | Track head dropped 6", 12" or 18" on a rigid stem, for high ceilings or to clear a beam. |
Ordering
Reading a Gallery XL part number
Example from the sheet: CTL942VN3KD-P
| Segment | Example | Options |
|---|---|---|
| Track system | CTL | CTL ConTech / Juno · HTL Halo · LTL Lightolier · NCTL Nordic · OTL 0-10V |
| Series (wattage) | 942 | 940 13 W · 941 20 W · 942 29 W · 943 38 W · 944 42 W · 945 49 W |
| Optic or reflector | VN | VN 8° (to 943) · NS 11° (to 944) · SP 11° · ME 22° · FL 41° · WF 50° |
| CCT and CRI | 3K | 27K, 3K, 35K, 4K at 80+ · 27KC, 3KC, 35KC, 4KC at 90+ |
| Driver | D | D 120V phase · DI 120V with integrated rotary dimmer |
| Finish | P | B matte black · P matte white · S matte silver |
Accessories
Two slots on the face
Gallery XL takes up to two accessories; a snoot or a barn-door set counts as one. Lenses and filters are the 3-3/4" LF20 series.
| Accessory | Part | Notes |
|---|---|---|
| Snoot | FA-94 | Optional cross blades. Painted to match; interior black. |
| Honeycomb louver | LA-45 | 3-3/4", black. |
| Barn doors | BD94 | Black. |
| Lenses and filters | LF20 series | Tempered glass, 3-3/4". |
Dimming
Tested dimmers
Same bench list as Gallery M, measured with a single fixture: Lutron Diva DVCL-153P 0–100%, Diva ELV DVELV303P 3–100%, Maestro ELV MAELV600 0–100%, Maestro C·L MACL-153M 0–99%, RA2 Select RRD-6CL 2–98%, Skylark C·L SCL-153P 0–100%, Ariadni TGCL-153P 0–100%, Faedra FAELV500 7–100%; Leviton Vizia VPE06 4–100%, Decora 6673-10W 11–100%.
Questions
Questions about Gallery XL
How bright is the Gallery XL?
Up to 4,463 lumens at 49 W with the flood reflector, standard engine, 3000K. The 8° very narrow spot tops out at 1,550 lm at 38 W because it is a lens optic with a small source. The full grid by beam and wattage is on this page.
Is Gallery XL DLC listed?
Yes, on all models using the Spot, Medium, Flood and Wide Flood reflectors. The 8° very narrow spot and 11° narrow spot lens optics are excluded. If a rebate matters, stay on the reflectors.
What is the integrated rotary dimmer?
A dimmer knob on the head itself, ordered as driver option DI. Each fixture can be set individually from the ladder. ConTech says not to use it on a track that is also on a wall dimmer — one or the other.
Can I get an 8° beam?
Yes. The very narrow spot is a dual-lens optic with an 8° beam and 17° field, on 13 W through 38 W. On the Xicato engine it is 13 W only.
Gallery M or Gallery XL?
XL when you need output, a very tight beam, DLC, or the on-head dimmer. M when you need the widest optic range, the adjustable-beam head, 2-step colour consistency, or a smaller cylinder in the ceiling. They share engines and prefixes, so mixing them on one job is normal.
Does it fit existing Juno, Halo or Lightolier track?
Yes: CTL for ConTech and Juno as-is, HTL for Halo, LTL for Lightolier, chosen when you order. Nordic 2C/2N and ConTech 0-10V track are the NCTL and OTL prefixes.
Is there a wet or damp version?
The track heads are dry location. The canopy-mount Gallery XL warm dim (CTL94C WD) is damp rated, which makes it the family’s covered-exterior option.
What does it weigh?
Five pounds. Worth knowing on a long run of track with many heads, and on older track where the mounting was sized for lighter fixtures.
Next step
Get Gallery XL priced
Tell me the mounting height and the size of what it has to light. That decides whether you are in the lens optics or the reflectors, and everything follows from there.
